#include <adc_sensor.h>

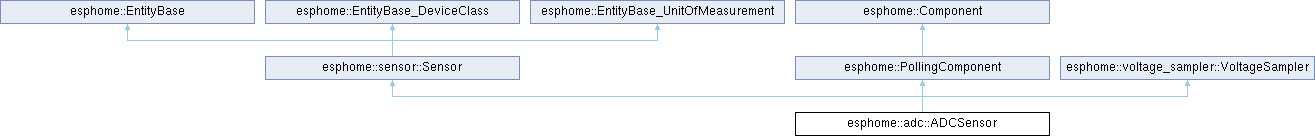

Inheritance diagram for esphome::adc::ADCSensor:

Data Structures
struct	SetupFlags

Public Member Functions
void	update () override
	Update the sensor's state by reading the current ADC value.

void	setup () override
	Set up the ADC sensor by initializing hardware and calibration parameters.

void	dump_config () override
	Output the configuration details of the ADC sensor for debugging purposes.

float	get_setup_priority () const override
	Return the setup priority for this component.

void	set_adc_channel (const adc_dt_spec *channel)
	Set the ADC channel to be used by the ADC sensor.

void	set_pin (InternalGPIOPin *pin)
	Set the GPIO pin to be used by the ADC sensor.

void	set_output_raw (bool output_raw)
	Enable or disable the output of raw ADC values (unprocessed data).

void	set_sample_count (uint8_t sample_count)
	Set the number of samples to be taken for ADC readings to improve accuracy.

void	set_sampling_mode (SamplingMode sampling_mode)
	Set the sampling mode for how multiple ADC samples are combined into a single measurement.

float	sample () override
	Perform a single ADC sampling operation and return the measured value.

void	set_attenuation (adc_atten_t attenuation)
	Set the ADC attenuation level to adjust the input voltage range.

void	set_channel (adc_unit_t unit, adc_channel_t channel)
	Configure the ADC to use a specific channel on a specific ADC unit.

void	set_autorange (bool autorange)
	Set whether autoranging should be enabled for the ADC.

void	set_is_temperature ()

Public Member Functions inherited from esphome::sensor::Sensor
	Sensor ()

int8_t	get_accuracy_decimals ()
	Get the accuracy in decimals, using the manual override if set.

void	set_accuracy_decimals (int8_t accuracy_decimals)
	Manually set the accuracy in decimals.

StateClass	get_state_class ()
	Get the state class, using the manual override if set.

void	set_state_class (StateClass state_class)
	Manually set the state class.

bool	get_force_update () const
	Get whether force update mode is enabled.

void	set_force_update (bool force_update)
	Set force update mode.

void	add_filter (Filter *filter)
	Add a filter to the filter chain. Will be appended to the back.

void	add_filters (const std::vector< Filter * > &filters)
	Add a list of vectors to the back of the filter chain.

void	set_filters (const std::vector< Filter * > &filters)
	Clear the filters and replace them by filters.

void	clear_filters ()
	Clear the entire filter chain.

float	get_state () const
	Getter-syntax for .state.

float	get_raw_state () const
	Getter-syntax for .raw_state.

void	publish_state (float state)
	Publish a new state to the front-end.

void	add_on_state_callback (std::function< void(float)> &&callback)
	Add a callback that will be called every time a filtered value arrives.

void	add_on_raw_state_callback (std::function< void(float)> &&callback)
	Add a callback that will be called every time the sensor sends a raw value.

void	internal_send_state_to_frontend (float state)

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

bool	has_own_name () const

std::string	get_object_id () const

void	set_object_id (const char *object_id)

uint32_t	get_object_id_hash ()

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

std::string	get_icon () const

void	set_icon (const char *icon)

StringRef	get_icon_ref () const

uint32_t	get_device_id () const

void	set_device (Device *device)

bool	has_state () const

void	set_has_state (bool state)

Public Member Functions inherited from esphome::EntityBase_DeviceClass
std::string	get_device_class ()
	Get the device class, using the manual override if set.

void	set_device_class (const char *device_class)
	Manually set the device class.

StringRef	get_device_class_ref () const
	Get the device class as StringRef.

Public Member Functions inherited from esphome::EntityBase_UnitOfMeasurement
std::string	get_unit_of_measurement ()
	Get the unit of measurement, using the manual override if set.

void	set_unit_of_measurement (const char *unit_of_measurement)
	Manually set the unit of measurement.

StringRef	get_unit_of_measurement_ref () const
	Get the unit of measurement as StringRef.

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
virtual void	loop ()
	This method will be called repeatedly.

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_error (const char *message=nullptr)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Public Member Functions inherited from esphome::voltage_sampler::VoltageSampler

Protected Member Functions
float	sample_autorange_ ()

float	sample_fixed_attenuation_ ()

Protected Member Functions inherited from esphome::EntityBase
virtual uint32_t	hash_base ()
	The hash_base() function has been deprecated.

void	calc_object_id_ ()

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
uint8_t	sample_count_ {1}

bool	output_raw_ {false}

InternalGPIOPin *	pin_

SamplingMode	sampling_mode_ {SamplingMode::AVG}

bool	autorange_ {false}

adc_oneshot_unit_handle_t	adc_handle_ {nullptr}

adc_cali_handle_t	calibration_handle_ {nullptr}

adc_atten_t	attenuation_ {ADC_ATTEN_DB_0}

adc_channel_t	channel_ {}

adc_unit_t	adc_unit_ {}

struct esphome::adc::ADCSensor::SetupFlags	setup_flags_

bool	is_temperature_ {false}

const struct adc_dt_spec *	channel_ = nullptr

Protected Attributes inherited from esphome::sensor::Sensor
std::unique_ptr< CallbackManager< void(float)> >	raw_callback_
	Storage for raw state callbacks (lazy allocated).

CallbackManager< void(float)>	callback_
	Storage for filtered state callbacks.

Filter *	filter_list_ {nullptr}
	Store all active filters.

int8_t	accuracy_decimals_ {-1}
	Accuracy in decimals (-1 = not set)

StateClass	state_class_ {STATE_CLASS_NONE}
	State class (STATE_CLASS_NONE = not set)

struct esphome::sensor::Sensor::SensorFlags	sensor_flags_

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	object_id_c_str_ {nullptr}

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Protected Attributes inherited from esphome::EntityBase_DeviceClass
const char *	device_class_ {nullptr}
	Device class override.

Protected Attributes inherited from esphome::EntityBase_UnitOfMeasurement
const char *	unit_of_measurement_ {nullptr}
	Unit of measurement override.

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
const char *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Static Protected Attributes
static adc_oneshot_unit_handle_t	shared_adc_handles [2] = {nullptr, nullptr}

Additional Inherited Members
Data Fields inherited from esphome::sensor::Sensor
float	state
	This member variable stores the last state that has passed through all filters.

float	raw_state
	This member variable stores the current raw state of the sensor, without any filters applied.

Detailed Description

Definition at line 57 of file adc_sensor.h.

Member Function Documentation

◆ dump_config()

void esphome::adc::ADCSensor::dump_config ( )

overridevirtual

Output the configuration details of the ADC sensor for debugging purposes.

This method is called during the ESPHome setup process to log the configuration.

Reimplemented from esphome::Component.

Definition at line 120 of file adc_sensor_esp32.cpp.

◆ get_setup_priority()

float esphome::adc::ADCSensor::get_setup_priority ( ) const

overridevirtual

Return the setup priority for this component.

Components with higher priority are initialized earlier during setup.

Returns: A float representing the setup priority.

Reimplemented from esphome::Component.

Definition at line 82 of file adc_sensor_common.cpp.

◆ sample()

float esphome::adc::ADCSensor::sample ( )

overridevirtual

Perform a single ADC sampling operation and return the measured value.

This function handles raw readings, calibration, and averaging as needed.

Returns: The sampled value as a float.

Implements esphome::voltage_sampler::VoltageSampler.

Definition at line 146 of file adc_sensor_esp32.cpp.

◆ sample_autorange_()

float esphome::adc::ADCSensor::sample_autorange_ ( )

protected

Definition at line 202 of file adc_sensor_esp32.cpp.

◆ sample_fixed_attenuation_()

float esphome::adc::ADCSensor::sample_fixed_attenuation_ ( )

protected

Definition at line 154 of file adc_sensor_esp32.cpp.

◆ set_adc_channel()

void esphome::adc::ADCSensor::set_adc_channel ( const adc_dt_spec * channel )

inline

Set the ADC channel to be used by the ADC sensor.

Parameters

channel Pointer to an adc_dt_spec structure representing the ADC channel.

Definition at line 79 of file adc_sensor.h.

◆ set_attenuation()

void esphome::adc::ADCSensor::set_attenuation ( adc_atten_t attenuation )

inline

Set the ADC attenuation level to adjust the input voltage range.

This determines how the ADC interprets input voltages, allowing for greater precision or the ability to measure higher voltages depending on the chosen attenuation level.

Parameters

attenuation The desired ADC attenuation level (e.g., ADC_ATTEN_DB_0, ADC_ATTEN_DB_11).

Definition at line 114 of file adc_sensor.h.

◆ set_autorange()

void esphome::adc::ADCSensor::set_autorange ( bool autorange )

inline

Set whether autoranging should be enabled for the ADC.

Autoranging automatically adjusts the attenuation level to handle a wide range of input voltages.

Parameters

autorange Boolean indicating whether to enable autoranging.

Definition at line 128 of file adc_sensor.h.

◆ set_channel()

void esphome::adc::ADCSensor::set_channel	(	adc_unit_t	unit,
		adc_channel_t	channel )

inline

Configure the ADC to use a specific channel on a specific ADC unit.

This sets the channel for single-shot or continuous ADC measurements.

Parameters

unit	The ADC unit to use (ADC_UNIT_1 or ADC_UNIT_2).
channel	The ADC channel to configure, such as ADC_CHANNEL_0, ADC_CHANNEL_3, etc.

Definition at line 120 of file adc_sensor.h.

◆ set_is_temperature()

void esphome::adc::ADCSensor::set_is_temperature ( )

inline

Definition at line 132 of file adc_sensor.h.

◆ set_output_raw()

void esphome::adc::ADCSensor::set_output_raw ( bool output_raw )

inline

Enable or disable the output of raw ADC values (unprocessed data).

Parameters

output_raw Boolean indicating whether to output raw ADC values (true) or processed values (false).

Definition at line 87 of file adc_sensor.h.

◆ set_pin()

void esphome::adc::ADCSensor::set_pin ( InternalGPIOPin * pin )

inline

Set the GPIO pin to be used by the ADC sensor.

Parameters

pin	Pointer to an InternalGPIOPin representing the ADC input pin.

Definition at line 83 of file adc_sensor.h.

◆ set_sample_count()

void esphome::adc::ADCSensor::set_sample_count ( uint8_t sample_count )

Set the number of samples to be taken for ADC readings to improve accuracy.

A higher sample count reduces noise but increases the reading time.

Parameters

sample_count The number of samples (e.g., 1, 4, 8).

Definition at line 74 of file adc_sensor_common.cpp.

◆ set_sampling_mode()

void esphome::adc::ADCSensor::set_sampling_mode ( SamplingMode sampling_mode )

Set the sampling mode for how multiple ADC samples are combined into a single measurement.

When multiple samples are taken (controlled by set_sample_count), they can be combined in one of three ways:

SamplingMode::AVG: Compute the average (default)
SamplingMode::MIN: Use the lowest sample value
SamplingMode::MAX: Use the highest sample value
Parameters

sampling_mode The desired sampling mode to use for aggregating ADC samples.

Definition at line 80 of file adc_sensor_common.cpp.

◆ setup()

void esphome::adc::ADCSensor::setup ( )

overridevirtual

Set up the ADC sensor by initializing hardware and calibration parameters.

This method is called once during device initialization.

Reimplemented from esphome::Component.

Definition at line 39 of file adc_sensor_esp32.cpp.

◆ update()

void esphome::adc::ADCSensor::update ( )

overridevirtual

Update the sensor's state by reading the current ADC value.

This method is called periodically based on the update interval.

Implements esphome::PollingComponent.

Definition at line 68 of file adc_sensor_common.cpp.

Field Documentation

◆ adc_handle_

adc_oneshot_unit_handle_t esphome::adc::ADCSensor::adc_handle_ {nullptr}

protected

Definition at line 145 of file adc_sensor.h.

◆ adc_unit_

adc_unit_t esphome::adc::ADCSensor::adc_unit_ {}

protected

Definition at line 149 of file adc_sensor.h.

◆ attenuation_

adc_atten_t esphome::adc::ADCSensor::attenuation_ {ADC_ATTEN_DB_0}

protected

Definition at line 147 of file adc_sensor.h.

◆ autorange_

bool esphome::adc::ADCSensor::autorange_ {false}

protected

Definition at line 144 of file adc_sensor.h.

◆ calibration_handle_

adc_cali_handle_t esphome::adc::ADCSensor::calibration_handle_ {nullptr}

protected

Definition at line 146 of file adc_sensor.h.

◆ channel_ [1/2]

adc_channel_t esphome::adc::ADCSensor::channel_ {}

protected

Definition at line 148 of file adc_sensor.h.

◆ channel_ [2/2]

const struct adc_dt_spec* esphome::adc::ADCSensor::channel_ = nullptr

protected

Definition at line 165 of file adc_sensor.h.

◆ is_temperature_

bool esphome::adc::ADCSensor::is_temperature_ {false}

protected

Definition at line 161 of file adc_sensor.h.

◆ output_raw_

bool esphome::adc::ADCSensor::output_raw_ {false}

protected

Definition at line 137 of file adc_sensor.h.

◆ pin_

InternalGPIOPin* esphome::adc::ADCSensor::pin_

protected

Definition at line 138 of file adc_sensor.h.

◆ sample_count_

uint8_t esphome::adc::ADCSensor::sample_count_ {1}

protected

Definition at line 136 of file adc_sensor.h.

◆ sampling_mode_

SamplingMode esphome::adc::ADCSensor::sampling_mode_ {SamplingMode::AVG}

protected

Definition at line 139 of file adc_sensor.h.

◆ setup_flags_

struct esphome::adc::ADCSensor::SetupFlags esphome::adc::ADCSensor::setup_flags_

protected

◆ shared_adc_handles

adc_oneshot_unit_handle_t esphome::adc::ADCSensor::shared_adc_handles = {nullptr, nullptr}

staticprotected

Definition at line 157 of file adc_sensor.h.

The documentation for this class was generated from the following files:

esphome/components/adc/adc_sensor.h
esphome/components/adc/adc_sensor_common.cpp
esphome/components/adc/adc_sensor_esp32.cpp
esphome/components/adc/adc_sensor_libretiny.cpp
esphome/components/adc/adc_sensor_rp2040.cpp
esphome/components/adc/adc_sensor_zephyr.cpp

Data Structures

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ dump_config()

◆ get_setup_priority()

◆ sample()

◆ sample_autorange_()

◆ sample_fixed_attenuation_()

◆ set_adc_channel()

◆ set_attenuation()

◆ set_autorange()

◆ set_channel()

◆ set_is_temperature()

◆ set_output_raw()

◆ set_pin()

◆ set_sample_count()

◆ set_sampling_mode()

◆ setup()

◆ update()

Field Documentation

◆ adc_handle_

◆ adc_unit_

◆ attenuation_

◆ autorange_

◆ calibration_handle_

◆ channel_ [1/2]

◆ channel_ [2/2]

◆ is_temperature_

◆ output_raw_

◆ pin_

◆ sample_count_

◆ sampling_mode_

◆ setup_flags_

◆ shared_adc_handles
