esphome::airthings_wave_plus::AirthingsWavePlus Class Reference

#include <airthings_wave_plus.h>

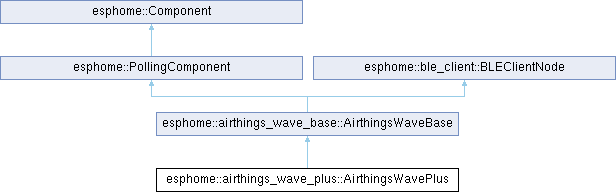

Inheritance diagram for esphome::airthings_wave_plus::AirthingsWavePlus:
esphome::airthings_wave_base::AirthingsWaveBase esphome::PollingComponent esphome::ble_client::BLEClientNode esphome::Component

Data Structures

struct  WavePlusReadings


Public Member Functions

void setup () override

void dump_config () override

void set_radon (sensor::Sensor *radon)

void set_radon_long_term (sensor::Sensor *radon_long_term)

void set_co2 (sensor::Sensor *co2)

void set_illuminance (sensor::Sensor *illuminance)

void set_device_type (WaveDeviceType wave_device_type)

- Public Member Functions inherited from esphome::airthings_wave_base::AirthingsWaveBase
 AirthingsWaveBase ()=default

void update () override

void gattc_event_handler (esp_gattc_cb_event_t event, esp_gatt_if_t gattc_if, esp_ble_gattc_cb_param_t *param) override

void set_temperature (sensor::Sensor *temperature)

void set_humidity (sensor::Sensor *humidity)

void set_pressure (sensor::Sensor *pressure)

void set_tvoc (sensor::Sensor *tvoc)

void set_battery_voltage (sensor::Sensor *voltage)

void set_battery_update_interval (uint32_t interval)

- Public Member Functions inherited from esphome::PollingComponent
 PollingComponent ()

 PollingComponent (uint32_t update_interval)
 Initialize this polling component with the given update interval in ms.

virtual void set_update_interval (uint32_t update_interval)
 Manually set the update interval in ms for this polling object.

void call_setup () override

virtual uint32_t get_update_interval () const
 Get the update interval in ms of this sensor.

void start_poller ()

void stop_poller ()

- Public Member Functions inherited from esphome::Component
virtual void loop ()
 This method will be called repeatedly.

virtual float get_setup_priority () const
 priority of setup().

float get_actual_setup_priority () const

void set_setup_priority (float priority)

virtual float get_loop_priority () const
 priority of loop().

void call ()

virtual void on_shutdown ()

virtual void on_safe_shutdown ()

virtual bool teardown ()
 Called during teardown to allow component to gracefully finish operations.

virtual void on_powerdown ()
 Called after teardown is complete to power down hardware.

uint8_t get_component_state () const

void reset_to_construction_state ()
 Reset this component back to the construction state to allow setup to run again.

bool is_in_loop_state () const
 Check if this component has completed setup and is in the loop state.

virtual void mark_failed ()
 Mark this component as failed.

void mark_failed (const char *message)

void disable_loop ()
 Disable this component's loop.

void enable_loop ()
 Enable this component's loop.

void enable_loop_soon_any_context ()
 Thread and ISR-safe version of enable_loop() that can be called from any context.

bool is_failed () const

bool is_ready () const

virtual bool can_proceed ()

bool status_has_warning () const

bool status_has_error () const

void status_set_warning (const char *message=nullptr)

void status_set_error (const char *message=nullptr)

void status_clear_warning ()

void status_clear_error ()

void status_momentary_warning (const std::string &name, uint32_t length=5000)

void status_momentary_error (const std::string &name, uint32_t length=5000)

bool has_overridden_loop () const

void set_component_source (const char *source)
 Set where this component was loaded from for some debug messages.

const char * get_component_source () const
 Get the integration where this component was declared as a string.

bool should_warn_of_blocking (uint32_t blocking_time)

- Public Member Functions inherited from esphome::ble_client::BLEClientNode
virtual void gap_event_handler (esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t *param)

virtual void loop ()

void set_address (uint64_t address)

BLEClientparent ()

void set_ble_client_parent (BLEClient *parent)


Protected Member Functions

bool is_valid_radon_value_ (uint16_t radon)

bool is_valid_co2_value_ (uint16_t co2)

void read_sensors (uint8_t *raw_value, uint16_t value_len) override

- Protected Member Functions inherited from esphome::airthings_wave_base::AirthingsWaveBase
bool is_valid_voc_value_ (uint16_t voc)

bool request_read_values_ ()

void response_pending_ ()

void response_received_ ()

void set_response_timeout_ ()

bool request_battery_ ()

void read_battery_ (uint8_t *raw_value, uint16_t value_len)

- Protected Member Functions inherited from esphome::Component
virtual void call_loop ()

virtual void call_dump_config ()

void set_component_state_ (uint8_t state)
 Helper to set component state (clears state bits and sets new state)

void set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
 Set an interval function with a unique name.

void set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
 Set an interval function with a const char* name.

void set_interval (uint32_t interval, std::function< void()> &&f)

bool cancel_interval (const std::string &name)
 Cancel an interval function.

bool cancel_interval (const char *name)

void set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
 Set an retry function with a unique name.

void set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool cancel_retry (const std::string &name)
 Cancel a retry function.

void set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
 Set a timeout function with a unique name.

void set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
 Set a timeout function with a const char* name.

void set_timeout (uint32_t timeout, std::function< void()> &&f)

bool cancel_timeout (const std::string &name)
 Cancel a timeout function.

bool cancel_timeout (const char *name)

void defer (const std::string &name, std::function< void()> &&f)
 Defer a callback to the next loop() call.

void defer (const char *name, std::function< void()> &&f)
 Defer a callback to the next loop() call with a const char* name.

void defer (std::function< void()> &&f)
 Defer a callback to the next loop() call.

bool cancel_defer (const std::string &name)
 Cancel a defer callback using the specified name, name must not be empty.


Protected Attributes

WaveDeviceType wave_device_type_ {WaveDeviceType::WAVE_PLUS}

sensor::Sensorradon_sensor_ {nullptr}

sensor::Sensorradon_long_term_sensor_ {nullptr}

sensor::Sensorco2_sensor_ {nullptr}

sensor::Sensorilluminance_sensor_ {nullptr}

- Protected Attributes inherited from esphome::airthings_wave_base::AirthingsWaveBase
sensor::Sensortemperature_sensor_ {nullptr}

sensor::Sensorhumidity_sensor_ {nullptr}

sensor::Sensorpressure_sensor_ {nullptr}

sensor::Sensortvoc_sensor_ {nullptr}

sensor::Sensorbattery_voltage_ {nullptr}

uint16_t handle_

espbt::ESPBTUUID service_uuid_

espbt::ESPBTUUID sensors_data_characteristic_uuid_

uint16_t acp_handle_ {0}

uint16_t cccd_handle_ {0}

espbt::ESPBTUUID access_control_point_characteristic_uuid_

uint8_t responses_pending_ {0}

bool read_battery_next_update_ {false}

uint32_t battery_update_interval_ {}

- Protected Attributes inherited from esphome::PollingComponent
uint32_t update_interval_

- Protected Attributes inherited from esphome::Component
const char * component_source_ {nullptr}

uint16_t warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
 Warn if blocked for this many ms (max 65.5s)

uint8_t component_state_ {0x00}
 State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool pending_enable_loop_ {false}
 ISR-safe flag for enable_loop_soon_any_context.

- Protected Attributes inherited from esphome::ble_client::BLEClientNode
BLEClientparent_

uint64_t address_


Additional Inherited Members

- Data Fields inherited from esphome::ble_client::BLEClientNode
espbt::ESPBTClientclient

espbt::ClientState node_state


Detailed Description

Definition at line 23 of file airthings_wave_plus.h.

Member Function Documentation

◆ dump_config()

void esphome::airthings_wave_plus::AirthingsWavePlus::dump_config ( )
overridevirtual

Reimplemented from esphome::Component.

Definition at line 60 of file airthings_wave_plus.cpp.

◆ is_valid_co2_value_()

bool esphome::airthings_wave_plus::AirthingsWavePlus::is_valid_co2_value_ ( uint16_t co2)
protected

Definition at line 58 of file airthings_wave_plus.cpp.

◆ is_valid_radon_value_()

bool esphome::airthings_wave_plus::AirthingsWavePlus::is_valid_radon_value_ ( uint16_t radon)
protected

Definition at line 56 of file airthings_wave_plus.cpp.

◆ read_sensors()

void esphome::airthings_wave_plus::AirthingsWavePlus::read_sensors ( uint8_t * raw_value,
uint16_t value_len )
overrideprotectedvirtual

◆ set_co2()

void esphome::airthings_wave_plus::AirthingsWavePlus::set_co2 ( sensor::Sensor * co2)
inline

Definition at line 31 of file airthings_wave_plus.h.

◆ set_device_type()

void esphome::airthings_wave_plus::AirthingsWavePlus::set_device_type ( WaveDeviceType wave_device_type)
inline

Definition at line 33 of file airthings_wave_plus.h.

◆ set_illuminance()

void esphome::airthings_wave_plus::AirthingsWavePlus::set_illuminance ( sensor::Sensor * illuminance)
inline

Definition at line 32 of file airthings_wave_plus.h.

◆ set_radon()

void esphome::airthings_wave_plus::AirthingsWavePlus::set_radon ( sensor::Sensor * radon)
inline

Definition at line 29 of file airthings_wave_plus.h.

◆ set_radon_long_term()

void esphome::airthings_wave_plus::AirthingsWavePlus::set_radon_long_term ( sensor::Sensor * radon_long_term)
inline

Definition at line 30 of file airthings_wave_plus.h.

◆ setup()

void esphome::airthings_wave_plus::AirthingsWavePlus::setup ( )
overridevirtual

Reimplemented from esphome::Component.

Definition at line 76 of file airthings_wave_plus.cpp.

Field Documentation

◆ co2_sensor_

sensor::Sensor* esphome::airthings_wave_plus::AirthingsWavePlus::co2_sensor_ {nullptr}
protected

Definition at line 44 of file airthings_wave_plus.h.

◆ illuminance_sensor_

sensor::Sensor* esphome::airthings_wave_plus::AirthingsWavePlus::illuminance_sensor_ {nullptr}
protected

Definition at line 45 of file airthings_wave_plus.h.

◆ radon_long_term_sensor_

sensor::Sensor* esphome::airthings_wave_plus::AirthingsWavePlus::radon_long_term_sensor_ {nullptr}
protected

Definition at line 43 of file airthings_wave_plus.h.

◆ radon_sensor_

sensor::Sensor* esphome::airthings_wave_plus::AirthingsWavePlus::radon_sensor_ {nullptr}
protected

Definition at line 42 of file airthings_wave_plus.h.

◆ wave_device_type_

WaveDeviceType esphome::airthings_wave_plus::AirthingsWavePlus::wave_device_type_ {WaveDeviceType::WAVE_PLUS}
protected

Definition at line 40 of file airthings_wave_plus.h.


The documentation for this class was generated from the following files:
