esphome::bmp3xx_base::BMP3XXComponent Class Referenceabstract

This class implements support for the BMP3XX Temperature+Pressure sensor. More...

#include <bmp3xx_base.h>

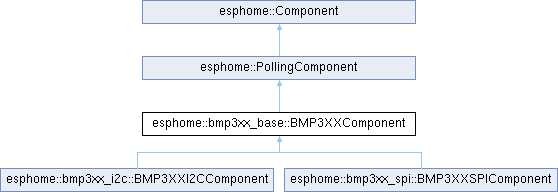

Inheritance diagram for esphome::bmp3xx_base::BMP3XXComponent:
esphome::PollingComponent esphome::Component esphome::bmp3xx_i2c::BMP3XXI2CComponent esphome::bmp3xx_spi::BMP3XXSPIComponent

Data Structures

struct  FloatParams


Protected Member Functions

struct {

   uint16_t   param_T1

   uint16_t   param_T2

   int8_t   param_T3

   int16_t   param_P1

   int16_t   param_P2

   int8_t   param_P3

   int8_t   param_P4

   uint16_t   param_P5

   uint16_t   param_P6

   int8_t   param_P7

   int8_t   param_P8

   int16_t   param_P9

   int8_t   param_P10

   int8_t   param_P11

} __attribute__ ((packed)) compensation_params_

float bmp388_compensate_temperature_ (float uncomp_temp)

float bmp388_compensate_pressure_ (float uncomp_press, float t_lin)

virtual bool read_byte (uint8_t a_register, uint8_t *data)=0

virtual bool write_byte (uint8_t a_register, uint8_t data)=0

virtual bool read_bytes (uint8_t a_register, uint8_t *data, size_t len)=0

virtual bool write_bytes (uint8_t a_register, uint8_t *data, size_t len)=0

- Protected Member Functions inherited from esphome::Component
friend void::setup ()

friend void::original_setup ()

void set_component_source_ (uint8_t index)
 Set where this component was loaded from for some debug messages.

void call_dump_config_ ()

void enable_loop_slow_path_ ()

void set_component_state_ (uint8_t state)
 Helper to set component state (clears state bits and sets new state)

bool set_status_flag_ (uint8_t flag)
 Helper to set a status LED flag on both this component and the app.

bool set_error_flag_ (const LogString *message)
 Set the error flag and log it; true when it was not set before.

void set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
 Set an interval function with a const char* name.

void set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
 Set an interval function with a numeric ID (zero heap allocation).

void set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)

void set_interval (uint32_t interval, std::function< void()> &&f)

bool cancel_interval (const char *name)
 Cancel an interval function.

bool cancel_interval (uint32_t id)

bool cancel_interval (InternalSchedulerID id)

void set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
 Set a timeout function with a const char* name.

void set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
 Set a timeout function with a numeric ID (zero heap allocation).

void set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)

void set_timeout (uint32_t timeout, std::function< void()> &&f)

bool cancel_timeout (const char *name)
 Cancel a timeout function.

bool cancel_timeout (uint32_t id)

bool cancel_timeout (InternalSchedulerID id)

void defer (const char *name, std::function< void()> &&f)
 Defer a callback to the next loop() call with a const char* name.

void defer (std::function< void()> &&f)
 Defer a callback to the next loop() call.

void defer (uint32_t id, std::function< void()> &&f)
 Defer a callback with a numeric ID (zero heap allocation)

bool cancel_defer (const char *name)
 Cancel a defer callback using the specified name, name must not be empty.

bool cancel_defer (uint32_t id)

void status_clear_warning_slow_path_ ()

void status_clear_error_slow_path_ ()


Protected Attributes

Oversampling temperature_oversampling_ {OVERSAMPLING_X16}

Oversampling pressure_oversampling_ {OVERSAMPLING_X16}

IIRFilter iir_filter_ {IIR_FILTER_OFF}

OperationMode operation_mode_ {FORCED_MODE}

struct esphome::bmp3xx_base::BMP3XXComponent::FloatParams compensation_float_params_

union {

   struct {

      uint8_t   chip_id_nvm: 4

      uint8_t   chip_id_fixed: 4

   }   bit

   uint8_t   reg

} chip_id_ = {.reg = 0}

union {

   struct {

      uint8_t   por_detected: 1

   }   bit

   uint8_t   reg

} event_ = {.reg = 0}

union {

   struct {

      uint8_t   fwm_int: 1

      uint8_t   ffull_int: 1

      uint8_t   : 1

      uint8_t   drdy: 1

   }   bit

   uint8_t   reg

} int_status_ = {.reg = 0}

union {

   struct {

      uint8_t   press_en: 1

      uint8_t   temp_en: 1

      uint8_t   : 2

      uint8_t   mode: 2

   }   bit

   uint8_t   reg

} pwr_ctrl_ = {.reg = 0}

union {

   struct {

      uint8_t   osr_p: 3

      uint8_t   osr_t: 3

   }   bit

   uint8_t   reg

} osr_ = {.reg = 0}

union {

   struct {

      uint8_t   odr_sel: 5

   }   bit

   uint8_t   reg

} odr_ = {.reg = 0}

union {

   struct {

      uint8_t   : 1

      uint8_t   iir_filter: 3

   }   bit

   uint8_t   reg

} config_ = {.reg = 0}

- Protected Attributes inherited from esphome::PollingComponent
uint32_t update_interval_

- Protected Attributes inherited from esphome::Component
uint8_t component_source_index_ {0}
 Index into component source PROGMEM lookup table (0 = not set)

uint8_t warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_CS}
 Warn threshold in centiseconds (max 2550ms)

uint8_t component_state_ {0x00}
 State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bit 5: Has overridden loop() (set at registration time) Bits 6-7: Unused - reserved for future expansion.

volatile bool pending_enable_loop_ {false}
 ISR-safe flag for enable_loop_soon_any_context.

ComponentRuntimeStats runtime_stats_


Additional Inherited Members

- Public Member Functions inherited from esphome::PollingComponent
 PollingComponent ()

 PollingComponent (uint32_t update_interval)
 Initialize this polling component with the given update interval in ms.

void set_update_interval (uint32_t update_interval)
 Manually set the update interval in ms for this polling object.

void call_setup () override

virtual uint32_t get_update_interval () const
 Get the update interval in ms of this sensor.

void start_poller ()

void stop_poller ()

- Public Member Functions inherited from esphome::Component
virtual void setup ()
 Where the component's initialization should happen.

virtual void loop ()
 This method will be called repeatedly.

virtual float get_setup_priority () const
 priority of setup().

float get_actual_setup_priority () const

void set_setup_priority (float priority)

void call ()

virtual void on_shutdown ()

virtual void on_safe_shutdown ()

virtual bool teardown ()
 Called during teardown to allow component to gracefully finish operations.

virtual void on_powerdown ()
 Called last before a reboot or deep sleep to power down hardware.

uint8_t get_component_state () const

void reset_to_construction_state ()
 Reset this component back to the construction state to allow setup to run again.

bool is_in_loop_state () const
 Check if this component has completed setup and is in the loop state.

bool is_idle () const
 Check if this component is idle.

void mark_failed ()
 Mark this component as failed.

void mark_failed (const LogString *message)

bool ESPHOME_ALWAYS_INLINE setup_check (bool ok)
 Marks the component failed with message (default "Communication failed") unless ok; returns ok.

bool ESPHOME_ALWAYS_INLINE setup_check (bool ok, const LogString *message)

void disable_loop ()
 Disable this component's loop.

void enable_loop ()
 Enable this component's loop.

void enable_loop_soon_any_context ()
 Thread and ISR-safe version of enable_loop() that can be called from any context.

bool is_failed () const

bool is_ready () const

virtual bool can_proceed ()

bool status_has_warning () const

bool status_has_error () const

void status_set_warning ()

void status_set_warning (const char *message)

void status_set_warning (const LogString *message)

bool status_comm_result (bool ok)
 Clears the warning when ok, else sets it with message (default "Communication failed"); returns ok.

bool status_comm_result (bool ok, const LogString *message)

void status_set_error ()

void status_set_error (const LogString *message)

void status_clear_warning ()

void status_clear_error ()

 ESPDEPRECATED ("Use status_momentary_warning() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_warning(const char *name

void status_momentary_warning (uint32_t length=5000)
 Set warning status flag and clear it after length ms.

void status_momentary_warning (const LogString *message, uint32_t length=5000)

 ESPDEPRECATED ("Use status_momentary_error() without a name. Removed in 2027.5.0", "2026.11.0") void status_momentary_error(const char *name

void status_momentary_error (uint32_t length=5000)
 Set error status flag and clear it after length ms.

void status_momentary_error (const LogString *message, uint32_t length=5000)

bool has_overridden_loop () const

const LogString * get_component_log_str () const ESPHOME_ALWAYS_INLINE
 Get the integration where this component was declared as a LogString for logging.

bool should_warn_of_blocking (uint32_t blocking_time, uint32_t &threshold_ms_out)

- Data Fields inherited from esphome::Component
uint32_t length = 5000)


Detailed Description

This class implements support for the BMP3XX Temperature+Pressure sensor.

Definition at line 71 of file bmp3xx_base.h.

Member Function Documentation

◆ __attribute__()

struct esphome::bmp3xx_base::BMP3XXComponent::@23 esphome::bmp3xx_base::BMP3XXComponent::__attribute__ ( (packed) )
protected

◆ bmp388_compensate_pressure_()

float esphome::bmp3xx_base::BMP3XXComponent::bmp388_compensate_pressure_ ( float uncomp_press,
float t_lin )
protected

Definition at line 311 of file bmp3xx_base.cpp.

◆ bmp388_compensate_temperature_()

float esphome::bmp3xx_base::BMP3XXComponent::bmp388_compensate_temperature_ ( float uncomp_temp)
protected

Definition at line 305 of file bmp3xx_base.cpp.

◆ read_byte()

virtual bool esphome::bmp3xx_base::BMP3XXComponent::read_byte ( uint8_t a_register,
uint8_t * data )
protectedpure virtual

◆ read_bytes()

virtual bool esphome::bmp3xx_base::BMP3XXComponent::read_bytes ( uint8_t a_register,
uint8_t * data,
size_t len )
protectedpure virtual

◆ write_byte()

virtual bool esphome::bmp3xx_base::BMP3XXComponent::write_byte ( uint8_t a_register,
uint8_t data )
protectedpure virtual

◆ write_bytes()

virtual bool esphome::bmp3xx_base::BMP3XXComponent::write_bytes ( uint8_t a_register,
uint8_t * data,
size_t len )
protectedpure virtual

Field Documentation

◆ __pad0__

uint8_t esphome::bmp3xx_base::BMP3XXComponent::__pad0__

Definition at line 179 of file bmp3xx_base.h.

◆ [struct] [1/7]

struct { ... } esphome::bmp3xx_base::BMP3XXComponent::bit

◆ [struct] [2/7]

struct { ... } esphome::bmp3xx_base::BMP3XXComponent::bit

◆ [struct] [3/7]

struct { ... } esphome::bmp3xx_base::BMP3XXComponent::bit

◆ [struct] [4/7]

struct { ... } esphome::bmp3xx_base::BMP3XXComponent::bit

◆ [struct] [5/7]

struct { ... } esphome::bmp3xx_base::BMP3XXComponent::bit

◆ [struct] [6/7]

struct { ... } esphome::bmp3xx_base::BMP3XXComponent::bit

◆ [struct] [7/7]

struct { ... } esphome::bmp3xx_base::BMP3XXComponent::bit

◆ [union]

union { ... } esphome::bmp3xx_base::BMP3XXComponent::chip_id_

◆ chip_id_fixed

uint8_t esphome::bmp3xx_base::BMP3XXComponent::chip_id_fixed

Definition at line 163 of file bmp3xx_base.h.

◆ chip_id_nvm

uint8_t esphome::bmp3xx_base::BMP3XXComponent::chip_id_nvm

Definition at line 162 of file bmp3xx_base.h.

◆ compensation_float_params_

struct esphome::bmp3xx_base::BMP3XXComponent::FloatParams esphome::bmp3xx_base::BMP3XXComponent::compensation_float_params_
protected

◆ [union]

union { ... } esphome::bmp3xx_base::BMP3XXComponent::config_

◆ drdy

uint8_t esphome::bmp3xx_base::BMP3XXComponent::drdy

Definition at line 180 of file bmp3xx_base.h.

◆ [union]

union { ... } esphome::bmp3xx_base::BMP3XXComponent::event_

◆ ffull_int

uint8_t esphome::bmp3xx_base::BMP3XXComponent::ffull_int

Definition at line 178 of file bmp3xx_base.h.

◆ fwm_int

uint8_t esphome::bmp3xx_base::BMP3XXComponent::fwm_int

Definition at line 177 of file bmp3xx_base.h.

◆ iir_filter

uint8_t esphome::bmp3xx_base::BMP3XXComponent::iir_filter

Definition at line 213 of file bmp3xx_base.h.

◆ iir_filter_

IIRFilter esphome::bmp3xx_base::BMP3XXComponent::iir_filter_ {IIR_FILTER_OFF}
protected

Definition at line 123 of file bmp3xx_base.h.

◆ [union]

union { ... } esphome::bmp3xx_base::BMP3XXComponent::int_status_

◆ mode

uint8_t esphome::bmp3xx_base::BMP3XXComponent::mode

Definition at line 190 of file bmp3xx_base.h.

◆ [union]

union { ... } esphome::bmp3xx_base::BMP3XXComponent::odr_

◆ odr_sel

uint8_t esphome::bmp3xx_base::BMP3XXComponent::odr_sel

Definition at line 205 of file bmp3xx_base.h.

◆ operation_mode_

OperationMode esphome::bmp3xx_base::BMP3XXComponent::operation_mode_ {FORCED_MODE}
protected

Definition at line 124 of file bmp3xx_base.h.

◆ [union]

union { ... } esphome::bmp3xx_base::BMP3XXComponent::osr_

◆ osr_p

uint8_t esphome::bmp3xx_base::BMP3XXComponent::osr_p

Definition at line 197 of file bmp3xx_base.h.

◆ osr_t

uint8_t esphome::bmp3xx_base::BMP3XXComponent::osr_t

Definition at line 198 of file bmp3xx_base.h.

◆ param_P1

int16_t esphome::bmp3xx_base::BMP3XXComponent::param_P1

Definition at line 130 of file bmp3xx_base.h.

◆ param_P10

int8_t esphome::bmp3xx_base::BMP3XXComponent::param_P10

Definition at line 139 of file bmp3xx_base.h.

◆ param_P11

int8_t esphome::bmp3xx_base::BMP3XXComponent::param_P11

Definition at line 140 of file bmp3xx_base.h.

◆ param_P2

int16_t esphome::bmp3xx_base::BMP3XXComponent::param_P2

Definition at line 131 of file bmp3xx_base.h.

◆ param_P3

int8_t esphome::bmp3xx_base::BMP3XXComponent::param_P3

Definition at line 132 of file bmp3xx_base.h.

◆ param_P4

int8_t esphome::bmp3xx_base::BMP3XXComponent::param_P4

Definition at line 133 of file bmp3xx_base.h.

◆ param_P5

uint16_t esphome::bmp3xx_base::BMP3XXComponent::param_P5

Definition at line 134 of file bmp3xx_base.h.

◆ param_P6

uint16_t esphome::bmp3xx_base::BMP3XXComponent::param_P6

Definition at line 135 of file bmp3xx_base.h.

◆ param_P7

int8_t esphome::bmp3xx_base::BMP3XXComponent::param_P7

Definition at line 136 of file bmp3xx_base.h.

◆ param_P8

int8_t esphome::bmp3xx_base::BMP3XXComponent::param_P8

Definition at line 137 of file bmp3xx_base.h.

◆ param_P9

int16_t esphome::bmp3xx_base::BMP3XXComponent::param_P9

Definition at line 138 of file bmp3xx_base.h.

◆ param_T1

uint16_t esphome::bmp3xx_base::BMP3XXComponent::param_T1

Definition at line 127 of file bmp3xx_base.h.

◆ param_T2

uint16_t esphome::bmp3xx_base::BMP3XXComponent::param_T2

Definition at line 128 of file bmp3xx_base.h.

◆ param_T3

int8_t esphome::bmp3xx_base::BMP3XXComponent::param_T3

Definition at line 129 of file bmp3xx_base.h.

◆ por_detected

uint8_t esphome::bmp3xx_base::BMP3XXComponent::por_detected

Definition at line 170 of file bmp3xx_base.h.

◆ press_en

uint8_t esphome::bmp3xx_base::BMP3XXComponent::press_en

Definition at line 187 of file bmp3xx_base.h.

◆ pressure_oversampling_

Oversampling esphome::bmp3xx_base::BMP3XXComponent::pressure_oversampling_ {OVERSAMPLING_X16}
protected

Definition at line 122 of file bmp3xx_base.h.

◆ [union]

union { ... } esphome::bmp3xx_base::BMP3XXComponent::pwr_ctrl_

◆ reg

uint8_t esphome::bmp3xx_base::BMP3XXComponent::reg

Definition at line 165 of file bmp3xx_base.h.

◆ temp_en

uint8_t esphome::bmp3xx_base::BMP3XXComponent::temp_en

Definition at line 188 of file bmp3xx_base.h.

◆ temperature_oversampling_

Oversampling esphome::bmp3xx_base::BMP3XXComponent::temperature_oversampling_ {OVERSAMPLING_X16}
protected

Definition at line 121 of file bmp3xx_base.h.


The documentation for this class was generated from the following files:
