Simple helper class to expose a touch pad value as a binary sensor. More...

#include <esp32_touch.h>

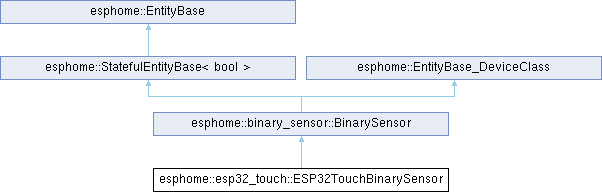

Inheritance diagram for esphome::esp32_touch::ESP32TouchBinarySensor:

Public Member Functions
	ESP32TouchBinarySensor (touch_pad_t touch_pad, uint32_t threshold, uint32_t wakeup_threshold)

touch_pad_t	get_touch_pad () const

uint32_t	get_threshold () const

void	set_threshold (uint32_t threshold)

uint32_t	get_value () const
	Get the raw touch measurement value.

uint32_t	get_wakeup_threshold () const

Public Member Functions inherited from esphome::binary_sensor::BinarySensor
	BinarySensor ()

void	publish_state (bool new_state)
	Publish a new state to the front-end.

void	publish_initial_state (bool new_state)
	Publish the initial state, this will not make the callback manager send callbacks and is meant only for the initial state on boot.

void	add_filter (Filter *filter)

void	add_filters (const std::vector< Filter * > &filters)

void	send_state_internal (bool new_state)

virtual bool	is_status_binary_sensor () const
	Return whether this binary sensor has outputted a state.

Public Member Functions inherited from esphome::StatefulEntityBase< bool >
virtual bool	has_state () const

virtual const bool &	get_state () const

virtual bool	get_state_default (bool default_value) const

void	invalidate_state ()

void	add_full_state_callback (std::function< void(optional< bool > previous, optional< bool > current)> &&callback)

void	add_on_state_callback (std::function< void(bool)> &&callback)

void	set_trigger_on_initial_state (bool trigger_on_initial_state)

Public Member Functions inherited from esphome::EntityBase
const StringRef &	get_name () const

void	set_name (const char *name)

bool	has_own_name () const

std::string	get_object_id () const

void	set_object_id (const char *object_id)

uint32_t	get_object_id_hash ()

bool	is_internal () const

void	set_internal (bool internal)

bool	is_disabled_by_default () const

void	set_disabled_by_default (bool disabled_by_default)

EntityCategory	get_entity_category () const

void	set_entity_category (EntityCategory entity_category)

std::string	get_icon () const

void	set_icon (const char *icon)

StringRef	get_icon_ref () const

uint32_t	get_device_id () const

void	set_device (Device *device)

bool	has_state () const

void	set_has_state (bool state)

Public Member Functions inherited from esphome::EntityBase_DeviceClass
std::string	get_device_class ()
	Get the device class, using the manual override if set.

void	set_device_class (const char *device_class)
	Manually set the device class.

StringRef	get_device_class_ref () const
	Get the device class as StringRef.

Protected Attributes
friend	ESP32TouchComponent

touch_pad_t	touch_pad_ {TOUCH_PAD_MAX}

uint32_t	threshold_ {0}

uint32_t	benchmark_ {}

uint32_t	value_ {0}
	Stores the last raw touch measurement value.

bool	last_state_ {false}

const uint32_t	wakeup_threshold_ {0}

uint32_t	last_touch_time_ {}

bool	initial_state_published_ {}

Protected Attributes inherited from esphome::binary_sensor::BinarySensor
Filter *	filter_list_ {nullptr}

Protected Attributes inherited from esphome::StatefulEntityBase< bool >
optional< bool >	state_

bool	trigger_on_initial_state_

CallbackManager< void(optional< bool > previous, optional< bool > current)> *	full_state_callbacks_

CallbackManager< void(bool)> *	state_callbacks_

Protected Attributes inherited from esphome::EntityBase
StringRef	name_

const char *	object_id_c_str_ {nullptr}

const char *	icon_c_str_ {nullptr}

uint32_t	object_id_hash_ {}

Device *	device_ {}

struct esphome::EntityBase::EntityFlags	flags_

Protected Attributes inherited from esphome::EntityBase_DeviceClass
const char *	device_class_ {nullptr}
	Device class override.

Additional Inherited Members
Data Fields inherited from esphome::binary_sensor::BinarySensor
bool	state {}

Protected Member Functions inherited from esphome::StatefulEntityBase< bool >
bool	set_state_ (const optional< bool > &state)
	Set a new state for this entity.

Protected Member Functions inherited from esphome::EntityBase
virtual uint32_t	hash_base ()
	The hash_base() function has been deprecated.

void	calc_object_id_ ()

Detailed Description

Simple helper class to expose a touch pad value as a binary sensor.

Definition at line 229 of file esp32_touch.h.

Constructor & Destructor Documentation

◆ ESP32TouchBinarySensor()

esphome::esp32_touch::ESP32TouchBinarySensor::ESP32TouchBinarySensor	(	touch_pad_t	touch_pad,
		uint32_t	threshold,
		uint32_t	wakeup_threshold )

inline

Definition at line 231 of file esp32_touch.h.

Member Function Documentation

◆ get_threshold()

uint32_t esphome::esp32_touch::ESP32TouchBinarySensor::get_threshold ( ) const

inline

Definition at line 235 of file esp32_touch.h.

◆ get_touch_pad()

touch_pad_t esphome::esp32_touch::ESP32TouchBinarySensor::get_touch_pad ( ) const

inline

Definition at line 234 of file esp32_touch.h.

◆ get_value()

uint32_t esphome::esp32_touch::ESP32TouchBinarySensor::get_value ( ) const

inline

Get the raw touch measurement value.

Note: Although this method may appear unused within the component, it is a public API used by lambdas in user configurations for custom touch value processing.

Returns: The current raw touch sensor reading

Definition at line 242 of file esp32_touch.h.

◆ get_wakeup_threshold()

uint32_t esphome::esp32_touch::ESP32TouchBinarySensor::get_wakeup_threshold ( ) const

inline

Definition at line 244 of file esp32_touch.h.

◆ set_threshold()

void esphome::esp32_touch::ESP32TouchBinarySensor::set_threshold ( uint32_t threshold )

inline

Definition at line 236 of file esp32_touch.h.

Field Documentation

◆ benchmark_

uint32_t esphome::esp32_touch::ESP32TouchBinarySensor::benchmark_ {}

protected

Definition at line 251 of file esp32_touch.h.

◆ ESP32TouchComponent

friend esphome::esp32_touch::ESP32TouchBinarySensor::ESP32TouchComponent

protected

Definition at line 247 of file esp32_touch.h.

◆ initial_state_published_

bool esphome::esp32_touch::ESP32TouchBinarySensor::initial_state_published_ {}

protected

Definition at line 265 of file esp32_touch.h.

◆ last_state_

bool esphome::esp32_touch::ESP32TouchBinarySensor::last_state_ {false}

protected

Definition at line 254 of file esp32_touch.h.

◆ last_touch_time_

uint32_t esphome::esp32_touch::ESP32TouchBinarySensor::last_touch_time_ {}

protected

Definition at line 264 of file esp32_touch.h.

◆ threshold_

uint32_t esphome::esp32_touch::ESP32TouchBinarySensor::threshold_ {0}

protected

Definition at line 250 of file esp32_touch.h.

◆ touch_pad_

touch_pad_t esphome::esp32_touch::ESP32TouchBinarySensor::touch_pad_ {TOUCH_PAD_MAX}

protected

Definition at line 249 of file esp32_touch.h.

◆ value_

uint32_t esphome::esp32_touch::ESP32TouchBinarySensor::value_ {0}

protected

Stores the last raw touch measurement value.

Definition at line 253 of file esp32_touch.h.

◆ wakeup_threshold_

const uint32_t esphome::esp32_touch::ESP32TouchBinarySensor::wakeup_threshold_ {0}

protected

Definition at line 255 of file esp32_touch.h.

The documentation for this class was generated from the following file:

esphome/components/esp32_touch/esp32_touch.h
