#include <gt911_touchscreen.h>

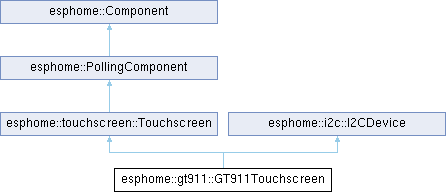

Inheritance diagram for esphome::gt911::GT911Touchscreen:

Public Member Functions
void	setup () override
	Initialize the GT911 touchscreen.

void	dump_config () override

bool	can_proceed () override

void	set_interrupt_pin (InternalGPIOPin *pin)

void	set_reset_pin (GPIOPin *pin)

void	register_button_listener (GT911ButtonListener *listener)

Public Member Functions inherited from esphome::touchscreen::Touchscreen
void	set_display (display::Display *display)

display::Display *	get_display () const

void	set_touch_timeout (uint16_t val)

void	set_mirror_x (bool invert_x)

void	set_mirror_y (bool invert_y)

void	set_swap_xy (bool swap)

void	set_calibration (int16_t x_min, int16_t x_max, int16_t y_min, int16_t y_max)

Trigger< TouchPoint, const TouchPoints_t & > *	get_touch_trigger ()

Trigger< const TouchPoints_t & > *	get_update_trigger ()

Trigger *	get_release_trigger ()

void	register_listener (TouchListener *listener)

optional< TouchPoint >	get_touch ()

TouchPoints_t	get_touches ()

void	update () override

void	loop () override

void	call_setup () override

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

virtual void	mark_failed ()
	Mark this component as failed.

void	mark_failed (const char *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_error (const char *message=nullptr)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const std::string &name, uint32_t length=5000)

void	status_momentary_error (const std::string &name, uint32_t length=5000)

bool	has_overridden_loop () const

void	set_component_source (const char *source)
	Set where this component was loaded from for some debug messages.

const char *	get_component_source () const
	Get the integration where this component was declared as a string.

bool	should_warn_of_blocking (uint32_t blocking_time)

Public Member Functions inherited from esphome::i2c::I2CDevice
	I2CDevice ()=default
	we use the C++ default constructor

void	set_i2c_address (uint8_t address)
	We store the address of the device on the bus.

uint8_t	get_i2c_address () const
	Returns the I2C address of the object.

void	set_i2c_bus (I2CBus *bus)
	we store the pointer to the I2CBus to use

I2CRegister	reg (uint8_t a_register)
	calls the I2CRegister constructor

I2CRegister16	reg16 (uint16_t a_register)
	calls the I2CRegister16 constructor

ErrorCode	read (uint8_t *data, size_t len)
	reads an array of bytes from the device using an I2CBus

ErrorCode	read_register (uint8_t a_register, uint8_t *data, size_t len, bool stop=true)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	read_register16 (uint16_t a_register, uint8_t *data, size_t len, bool stop=true)
	reads an array of bytes from a specific register in the I²C device

ErrorCode	write (const uint8_t *data, size_t len, bool stop=true)
	writes an array of bytes to a device using an I2CBus

ErrorCode	write_register (uint8_t a_register, const uint8_t *data, size_t len, bool stop=true)
	writes an array of bytes to a specific register in the I²C device

ErrorCode	write_register16 (uint16_t a_register, const uint8_t *data, size_t len, bool stop=true)
	write an array of bytes to a specific register in the I²C device

bool	read_bytes (uint8_t a_register, uint8_t *data, uint8_t len)
	Compat APIs All methods below have been added for compatibility reasons.

bool	read_bytes_raw (uint8_t *data, uint8_t len)

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes (uint8_t a_register)

template<size_t N>
optional< std::array< uint8_t, N > >	read_bytes_raw ()

bool	read_bytes_16 (uint8_t a_register, uint16_t *data, uint8_t len)

bool	read_byte (uint8_t a_register, uint8_t *data, bool stop=true)

optional< uint8_t >	read_byte (uint8_t a_register)

bool	read_byte_16 (uint8_t a_register, uint16_t *data)

bool	write_bytes (uint8_t a_register, const uint8_t *data, uint8_t len, bool stop=true)

bool	write_bytes (uint8_t a_register, const std::vector< uint8_t > &data)

template<size_t N>
bool	write_bytes (uint8_t a_register, const std::array< uint8_t, N > &data)

bool	write_bytes_16 (uint8_t a_register, const uint16_t *data, uint8_t len)

bool	write_byte (uint8_t a_register, uint8_t data, bool stop=true)

bool	write_byte_16 (uint8_t a_register, uint16_t data)

Protected Member Functions
void	update_touches () override

void	setup_internal_ ()
	Perform the internal setup routine for the GT911 touchscreen.

Protected Member Functions inherited from esphome::touchscreen::Touchscreen
void	attach_interrupt_ (InternalGPIOPin *irq_pin, esphome::gpio::InterruptType type)
	Call this function to send touch points to the `on_touch` listener and the binary_sensors.

void	add_raw_touch_position_ (uint8_t id, int16_t x_raw, int16_t y_raw, int16_t z_raw=0)

void	send_touches_ ()

int16_t	normalize_ (int16_t val, int16_t min_val, int16_t max_val, bool inverted=false)

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (const std::string &name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

void	set_interval (const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a const char* name.

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (const std::string &name)
	Cancel an interval function.

bool	cancel_interval (const char *name)

void	set_retry (const std::string &name, uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)
	Set an retry function with a unique name.

void	set_retry (uint32_t initial_wait_time, uint8_t max_attempts, std::function< RetryResult(uint8_t)> &&f, float backoff_increase_factor=1.0f)

bool	cancel_retry (const std::string &name)
	Cancel a retry function.

void	set_timeout (const std::string &name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

void	set_timeout (const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a const char* name.

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (const std::string &name)
	Cancel a timeout function.

bool	cancel_timeout (const char *name)

void	defer (const std::string &name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call with a const char* name.

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

bool	cancel_defer (const std::string &name)
	Cancel a defer callback using the specified name, name must not be empty.

Protected Attributes
bool	setup_done_ {false}
	True if the touchscreen setup has completed successfully.

InternalGPIOPin *	interrupt_pin_ {nullptr}

GPIOPin *	reset_pin_ {nullptr}

std::vector< GT911ButtonListener * >	button_listeners_

uint8_t	button_state_ {0xFF}

Protected Attributes inherited from esphome::touchscreen::Touchscreen
display::Display *	display_ {nullptr}

int16_t	x_raw_min_ {0}

int16_t	x_raw_max_ {0}

int16_t	y_raw_min_ {0}

int16_t	y_raw_max_ {0}

int16_t	display_width_ {0}

int16_t	display_height_ {0}

uint16_t	touch_timeout_ {0}

bool	invert_x_ {false}

bool	invert_y_ {false}

bool	swap_x_y_ {false}

Trigger< TouchPoint, const TouchPoints_t & >	touch_trigger_

Trigger< const TouchPoints_t & >	update_trigger_

Trigger	release_trigger_

std::vector< TouchListener * >	touch_listeners_

std::map< uint8_t, TouchPoint >	touches_

TouchscreenInterrupt	store_

bool	first_touch_ {true}

bool	need_update_ {false}

bool	is_touched_ {false}

bool	was_touched_ {false}

bool	skip_update_ {false}

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
const char *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Protected Attributes inherited from esphome::i2c::I2CDevice
uint8_t	address_ {0x00}
	store the address of the device on the bus

I2CBus *	bus_ {nullptr}
	pointer to I2CBus instance

Detailed Description

Definition at line 16 of file gt911_touchscreen.h.

Member Function Documentation

◆ can_proceed()

bool esphome::gt911::GT911Touchscreen::can_proceed ( )

inlineoverridevirtual

Reimplemented from esphome::Component.

Definition at line 31 of file gt911_touchscreen.h.

◆ dump_config()

void esphome::gt911::GT911Touchscreen::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 138 of file gt911_touchscreen.cpp.

◆ register_button_listener()

void esphome::gt911::GT911Touchscreen::register_button_listener ( GT911ButtonListener * listener )

inline

Definition at line 35 of file gt911_touchscreen.h.

◆ set_interrupt_pin()

void esphome::gt911::GT911Touchscreen::set_interrupt_pin ( InternalGPIOPin * pin )

inline

Definition at line 33 of file gt911_touchscreen.h.

◆ set_reset_pin()

void esphome::gt911::GT911Touchscreen::set_reset_pin ( GPIOPin * pin )

inline

Definition at line 34 of file gt911_touchscreen.h.

◆ setup()

void esphome::gt911::GT911Touchscreen::setup ( )

overridevirtual

Initialize the GT911 touchscreen.

If reset_pin_ is set, the touchscreen will be hardware reset, and the rest of the setup will be scheduled to run 50ms later using set_timeout() to allow the device to stabilize after reset.

If interrupt_pin_ is set, it will be temporarily configured during reset to control I2C address selection.

After the timeout, or immediately if no reset is performed, setup_internal_() is called to complete the initialization.

Reimplemented from esphome::Component.

Definition at line 27 of file gt911_touchscreen.cpp.

◆ setup_internal_()

void esphome::gt911::GT911Touchscreen::setup_internal_ ( )

protected

Perform the internal setup routine for the GT911 touchscreen.

This function checks the I2C address, configures the interrupt pin (if available), reads the touchscreen mode from the controller, and attempts to read calibration data (maximum X and Y values) if not already set.

On success, sets setup_done_ to true. On failure, calls mark_failed() with an appropriate error message.

Definition at line 44 of file gt911_touchscreen.cpp.

◆ update_touches()

void esphome::gt911::GT911Touchscreen::update_touches ( )

overrideprotectedvirtual

Implements esphome::touchscreen::Touchscreen.

Definition at line 94 of file gt911_touchscreen.cpp.

Field Documentation

◆ button_listeners_

std::vector<GT911ButtonListener *> esphome::gt911::GT911Touchscreen::button_listeners_

protected

Definition at line 54 of file gt911_touchscreen.h.

◆ button_state_

uint8_t esphome::gt911::GT911Touchscreen::button_state_ {0xFF}

protected

Definition at line 55 of file gt911_touchscreen.h.

◆ interrupt_pin_

InternalGPIOPin* esphome::gt911::GT911Touchscreen::interrupt_pin_ {nullptr}

protected

Definition at line 52 of file gt911_touchscreen.h.

◆ reset_pin_

GPIOPin* esphome::gt911::GT911Touchscreen::reset_pin_ {nullptr}

protected

Definition at line 53 of file gt911_touchscreen.h.

◆ setup_done_

bool esphome::gt911::GT911Touchscreen::setup_done_ {false}

protected

True if the touchscreen setup has completed successfully.

Definition at line 50 of file gt911_touchscreen.h.

The documentation for this class was generated from the following files:

esphome/components/gt911/touchscreen/gt911_touchscreen.h
esphome/components/gt911/touchscreen/gt911_touchscreen.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ can_proceed()

◆ dump_config()

◆ register_button_listener()

◆ set_interrupt_pin()

◆ set_reset_pin()

◆ setup()

◆ setup_internal_()

◆ update_touches()

Field Documentation

◆ button_listeners_

◆ button_state_

◆ interrupt_pin_

◆ reset_pin_

◆ setup_done_
