#include <ina2xx_base.h>

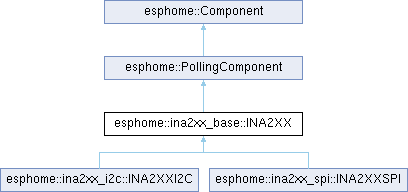

Inheritance diagram for esphome::ina2xx_base::INA2XX:

Public Member Functions
void	setup () override

void	update () override

void	loop () override

void	dump_config () override

void	set_shunt_resistance_ohm (float shunt_resistance_ohm)

void	set_max_current_a (float max_current_a)

void	set_adc_range (uint8_t range)

void	set_adc_time_bus_voltage (AdcTime time)

void	set_adc_time_shunt_voltage (AdcTime time)

void	set_adc_time_die_temperature (AdcTime time)

void	set_adc_avg_samples (AdcAvgSamples samples)

void	set_shunt_tempco (uint16_t coeff)

void	set_reset_on_boot (bool reset)

void	set_shunt_voltage_sensor (sensor::Sensor *sensor)

void	set_bus_voltage_sensor (sensor::Sensor *sensor)

void	set_die_temperature_sensor (sensor::Sensor *sensor)

void	set_current_sensor (sensor::Sensor *sensor)

void	set_power_sensor (sensor::Sensor *sensor)

void	set_energy_sensor_j (sensor::Sensor *sensor)

void	set_energy_sensor_wh (sensor::Sensor *sensor)

void	set_charge_sensor_c (sensor::Sensor *sensor)

void	set_charge_sensor_ah (sensor::Sensor *sensor)

void	set_model (INAModel model)

bool	reset_energy_counters ()

Public Member Functions inherited from esphome::PollingComponent
	PollingComponent ()

	PollingComponent (uint32_t update_interval)
	Initialize this polling component with the given update interval in ms.

virtual void	set_update_interval (uint32_t update_interval)
	Manually set the update interval in ms for this polling object.

void	call_setup () override

virtual uint32_t	get_update_interval () const
	Get the update interval in ms of this sensor.

void	start_poller ()

void	stop_poller ()

Public Member Functions inherited from esphome::Component
virtual float	get_setup_priority () const
	priority of setup().

float	get_actual_setup_priority () const

void	set_setup_priority (float priority)

virtual float	get_loop_priority () const
	priority of loop().

void	call ()

virtual void	on_shutdown ()

virtual void	on_safe_shutdown ()

virtual bool	teardown ()
	Called during teardown to allow component to gracefully finish operations.

virtual void	on_powerdown ()
	Called after teardown is complete to power down hardware.

uint8_t	get_component_state () const

void	reset_to_construction_state ()
	Reset this component back to the construction state to allow setup to run again.

bool	is_in_loop_state () const
	Check if this component has completed setup and is in the loop state.

bool	is_idle () const
	Check if this component is idle.

virtual void	mark_failed ()
	Mark this component as failed.

	ESPDEPRECATED ("Use mark_failed(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void mark_failed(const char *message)

void	mark_failed (const LogString *message)

void	disable_loop ()
	Disable this component's loop.

void	enable_loop ()
	Enable this component's loop.

void	enable_loop_soon_any_context ()
	Thread and ISR-safe version of enable_loop() that can be called from any context.

bool	is_failed () const

bool	is_ready () const

virtual bool	can_proceed ()

bool	status_has_warning () const

bool	status_has_error () const

void	status_set_warning (const char *message=nullptr)

void	status_set_warning (const LogString *message)

void	status_set_error ()

	ESPDEPRECATED ("Use status_set_error(LOG_STR(\"static string literal\")) instead. Do NOT use .c_str() from temporary " "strings. Will stop working in 2026.6.0", "2025.12.0") void status_set_error(const char *message)

void	status_set_error (const LogString *message)

void	status_clear_warning ()

void	status_clear_error ()

void	status_momentary_warning (const char *name, uint32_t length=5000)
	Set warning status flag and automatically clear it after a timeout.

void	status_momentary_error (const char *name, uint32_t length=5000)
	Set error status flag and automatically clear it after a timeout.

bool	has_overridden_loop () const

void	set_component_source (const LogString *source)
	Set where this component was loaded from for some debug messages.

const LogString *	get_component_log_str () const
	Get the integration where this component was declared as a LogString for logging.

bool	should_warn_of_blocking (uint32_t blocking_time)

Protected Types
enum class	State : uint8_t { NOT_INITIALIZED = 0x0 , IDLE , DATA_COLLECTION_1 , DATA_COLLECTION_2 , DATA_COLLECTION_3 , DATA_COLLECTION_4 , DATA_COLLECTION_5 , DATA_COLLECTION_6 , DATA_COLLECTION_7 , DATA_COLLECTION_8 }

Protected Member Functions
bool	reset_config_ ()

bool	check_device_model_ ()

bool	configure_adc_ ()

bool	configure_shunt_ ()

bool	configure_shunt_tempco_ ()

bool	configure_adc_range_ ()

bool	read_shunt_voltage_mv_ (float &volt_out)

bool	read_bus_voltage_ (float &volt_out)

bool	read_die_temp_c_ (float &temp)

bool	read_current_a_ (float &amps_out)

bool	read_power_w_ (float &power_out)

bool	read_energy_ (double &joules_out, double &watt_hours_out)

bool	read_charge_ (double &coulombs_out, double &amp_hours_out)

bool	read_diagnostics_and_act_ ()

bool	read_unsigned_ (uint8_t reg, uint8_t reg_size, uint64_t &data_out)

bool	read_unsigned_16_ (uint8_t reg, uint16_t &out)

bool	write_unsigned_16_ (uint8_t reg, uint16_t val)

int64_t	two_complement_ (uint64_t value, uint8_t bits)

virtual bool	read_ina_register (uint8_t a_register, uint8_t *data, size_t len)=0

virtual bool	write_ina_register (uint8_t a_register, const uint8_t *data, size_t len)=0

Protected Member Functions inherited from esphome::Component
virtual void	call_loop ()

virtual void	call_dump_config ()

void	set_component_state_ (uint8_t state)
	Helper to set component state (clears state bits and sets new state)

void	set_interval (uint32_t id, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a numeric ID (zero heap allocation).

void	set_interval (InternalSchedulerID id, uint32_t interval, std::function< void()> &&f)

void	set_interval (uint32_t interval, std::function< void()> &&f)

bool	cancel_interval (uint32_t id)

bool	cancel_interval (InternalSchedulerID id)

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const char *name

	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t id

	ESPDEPRECATED ("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(uint32_t initial_wait_time

ESPDEPRECATED("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const std	ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(const char *name)

	ESPDEPRECATED ("cancel_retry is deprecated and will be removed in 2026.8.0.", "2026.2.0") bool cancel_retry(uint32_t id)

void	set_timeout (uint32_t id, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a numeric ID (zero heap allocation).

void	set_timeout (InternalSchedulerID id, uint32_t timeout, std::function< void()> &&f)

void	set_timeout (uint32_t timeout, std::function< void()> &&f)

bool	cancel_timeout (uint32_t id)

bool	cancel_timeout (InternalSchedulerID id)

void	defer (std::function< void()> &&f)
	Defer a callback to the next loop() call.

void	defer (uint32_t id, std::function< void()> &&f)
	Defer a callback with a numeric ID (zero heap allocation)

bool	cancel_defer (uint32_t id)

Protected Attributes
float	shunt_resistance_ohm_

float	max_current_a_

AdcRange	adc_range_ {AdcRange::ADC_RANGE_0}

AdcTime	adc_time_bus_voltage_ {AdcTime::ADC_TIME_4120US}

AdcTime	adc_time_shunt_voltage_ {AdcTime::ADC_TIME_4120US}

AdcTime	adc_time_die_temperature_ {AdcTime::ADC_TIME_4120US}

AdcAvgSamples	adc_avg_samples_ {AdcAvgSamples::ADC_AVG_SAMPLES_128}

uint16_t	shunt_tempco_ppm_c_ {0}

bool	reset_on_boot_ {true}

uint16_t	shunt_cal_ {0}

float	current_lsb_ {0}

uint32_t	energy_overflows_count_ {0}

uint32_t	charge_overflows_count_ {0}

sensor::Sensor *	shunt_voltage_sensor_ {nullptr}

sensor::Sensor *	bus_voltage_sensor_ {nullptr}

sensor::Sensor *	die_temperature_sensor_ {nullptr}

sensor::Sensor *	current_sensor_ {nullptr}

sensor::Sensor *	power_sensor_ {nullptr}

sensor::Sensor *	energy_sensor_j_ {nullptr}

sensor::Sensor *	energy_sensor_wh_ {nullptr}

sensor::Sensor *	charge_sensor_c_ {nullptr}

sensor::Sensor *	charge_sensor_ah_ {nullptr}

enum esphome::ina2xx_base::INA2XX::State	NOT_INITIALIZED

bool	full_loop_is_okay_ {true}

INAModel	ina_model_ {INAModel::INA_UNKNOWN}

uint16_t	dev_id_ {0}

bool	device_mismatch_ {false}

struct {

float vbus_lsb

float v_shunt_lsb_range0

float v_shunt_lsb_range1

float shunt_cal_scale

int8_t current_lsb_scale_factor

float die_temp_lsb

float power_coeff

float energy_coeff

}	cfg_

Protected Attributes inherited from esphome::PollingComponent
uint32_t	update_interval_

Protected Attributes inherited from esphome::Component
ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_interval(const std voi	set_interval )(const char *name, uint32_t interval, std::function< void()> &&f)
	Set an interval function with a unique name.

ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_interval(const std boo	cancel_interval )(const char *name)
	Cancel an interval function.

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t	initial_wait_time

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t	max_attempts

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> &&	f

ESPDEPRECATED("set_retry is deprecated and will be removed in 2026.8.0. Use set_timeout or set_interval instead.", "2026.2.0") void set_retry(const std uint32_t uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)

uint32_t	initial_wait_time

uint32_t uint8_t	max_attempts

uint32_t uint8_t std::function< RetryResult(uint8_t)> &&	f

uint32_t uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)

uint8_t	max_attempts

uint8_t std::function< RetryResult(uint8_t)> &&	f

uint8_t std::function< RetryResult(uint8_t)> float	backoff_increase_factor = 1.0f)

ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") void set_timeout(const std voi	set_timeout )(const char *name, uint32_t timeout, std::function< void()> &&f)
	Set a timeout function with a unique name.

ESPDEPRECATED("Use const char* or uint32_t overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_timeout(const std boo	cancel_timeout )(const char *name)
	Cancel a timeout function.

ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") void defer(const std voi	defer )(const char *name, std::function< void()> &&f)
	Defer a callback to the next loop() call.

ESPDEPRECATED("Use const char* overload instead. Removed in 2026.7.0", "2026.1.0") bool cancel_defer(const std boo	cancel_defer )(const char *name)
	Cancel a defer callback using the specified name, name must not be empty.

const LogString *	component_source_ {nullptr}

uint16_t	warn_if_blocking_over_ {WARN_IF_BLOCKING_OVER_MS}
	Warn if blocked for this many ms (max 65.5s)

uint8_t	component_state_ {0x00}
	State of this component - each bit has a purpose: Bits 0-2: Component state (0x00=CONSTRUCTION, 0x01=SETUP, 0x02=LOOP, 0x03=FAILED, 0x04=LOOP_DONE) Bit 3: STATUS_LED_WARNING Bit 4: STATUS_LED_ERROR Bits 5-7: Unused - reserved for future expansion.

volatile bool	pending_enable_loop_ {false}
	ISR-safe flag for enable_loop_soon_any_context.

Detailed Description

Definition at line 114 of file ina2xx_base.h.

Member Enumeration Documentation

◆ State

enum class esphome::ina2xx_base::INA2XX::State : uint8_t

strongprotected

Enumerator
NOT_INITIALIZED
IDLE
DATA_COLLECTION_1
DATA_COLLECTION_2
DATA_COLLECTION_3
DATA_COLLECTION_4
DATA_COLLECTION_5
DATA_COLLECTION_6
DATA_COLLECTION_7
DATA_COLLECTION_8

Definition at line 202 of file ina2xx_base.h.

Member Function Documentation

◆ check_device_model_()

bool esphome::ina2xx_base::INA2XX::check_device_model_ ( )

protected

Definition at line 267 of file ina2xx_base.cpp.

◆ configure_adc_()

bool esphome::ina2xx_base::INA2XX::configure_adc_ ( )

protected

Definition at line 342 of file ina2xx_base.cpp.

◆ configure_adc_range_()

bool esphome::ina2xx_base::INA2XX::configure_adc_range_ ( )

protected

Definition at line 332 of file ina2xx_base.cpp.

◆ configure_shunt_()

bool esphome::ina2xx_base::INA2XX::configure_shunt_ ( )

protected

Definition at line 354 of file ina2xx_base.cpp.

◆ configure_shunt_tempco_()

bool esphome::ina2xx_base::INA2XX::configure_shunt_tempco_ ( )

protected

Definition at line 372 of file ina2xx_base.cpp.

◆ dump_config()

void esphome::ina2xx_base::INA2XX::dump_config ( )

overridevirtual

Reimplemented from esphome::Component.

Reimplemented in esphome::ina2xx_i2c::INA2XXI2C, and esphome::ina2xx_spi::INA2XXSPI.

Definition at line 193 of file ina2xx_base.cpp.

◆ loop()

void esphome::ina2xx_base::INA2XX::loop ( )

overridevirtual

Reimplemented from esphome::Component.

Definition at line 91 of file ina2xx_base.cpp.

◆ read_bus_voltage_()

bool esphome::ina2xx_base::INA2XX::read_bus_voltage_ ( float & volt_out )

protected

Definition at line 411 of file ina2xx_base.cpp.

◆ read_charge_()

bool esphome::ina2xx_base::INA2XX::read_charge_	(	double &	coulombs_out,
		double &	amp_hours_out )

protected

Definition at line 522 of file ina2xx_base.cpp.

◆ read_current_a_()

bool esphome::ina2xx_base::INA2XX::read_current_a_ ( float & amps_out )

protected

Definition at line 460 of file ina2xx_base.cpp.

◆ read_diagnostics_and_act_()

bool esphome::ina2xx_base::INA2XX::read_diagnostics_and_act_ ( )

protected

Definition at line 547 of file ina2xx_base.cpp.

◆ read_die_temp_c_()

bool esphome::ina2xx_base::INA2XX::read_die_temp_c_ ( float & temp )

protected

Definition at line 435 of file ina2xx_base.cpp.

◆ read_energy_()

bool esphome::ina2xx_base::INA2XX::read_energy_	(	double &	joules_out,
		double &	watt_hours_out )

protected

Definition at line 501 of file ina2xx_base.cpp.

◆ read_ina_register()

virtual bool esphome::ina2xx_base::INA2XX::read_ina_register	(	uint8_t	a_register,
		uint8_t *	data,
		size_t	len )

protectedpure virtual

Implemented in esphome::ina2xx_i2c::INA2XXI2C, and esphome::ina2xx_spi::INA2XXSPI.

◆ read_power_w_()

bool esphome::ina2xx_base::INA2XX::read_power_w_ ( float & power_out )

protected

Definition at line 486 of file ina2xx_base.cpp.

◆ read_shunt_voltage_mv_()

bool esphome::ina2xx_base::INA2XX::read_shunt_voltage_mv_ ( float & volt_out )

protected

Definition at line 384 of file ina2xx_base.cpp.

◆ read_unsigned_()

bool esphome::ina2xx_base::INA2XX::read_unsigned_	(	uint8_t	reg,
		uint8_t	reg_size,
		uint64_t &	data_out )

protected

Definition at line 576 of file ina2xx_base.cpp.

◆ read_unsigned_16_()

bool esphome::ina2xx_base::INA2XX::read_unsigned_16_	(	uint8_t	reg,
		uint16_t &	out )

protected

Definition at line 595 of file ina2xx_base.cpp.

◆ reset_config_()

bool esphome::ina2xx_base::INA2XX::reset_config_ ( )

protected

Definition at line 255 of file ina2xx_base.cpp.

◆ reset_energy_counters()

bool esphome::ina2xx_base::INA2XX::reset_energy_counters ( )

Definition at line 238 of file ina2xx_base.cpp.

◆ set_adc_avg_samples()

void esphome::ina2xx_base::INA2XX::set_adc_avg_samples ( AdcAvgSamples samples )

inline

Definition at line 127 of file ina2xx_base.h.

◆ set_adc_range()

void esphome::ina2xx_base::INA2XX::set_adc_range ( uint8_t range )

inline

Definition at line 123 of file ina2xx_base.h.

◆ set_adc_time_bus_voltage()

void esphome::ina2xx_base::INA2XX::set_adc_time_bus_voltage ( AdcTime time )

inline

Definition at line 124 of file ina2xx_base.h.

◆ set_adc_time_die_temperature()

void esphome::ina2xx_base::INA2XX::set_adc_time_die_temperature ( AdcTime time )

inline

Definition at line 126 of file ina2xx_base.h.

◆ set_adc_time_shunt_voltage()

void esphome::ina2xx_base::INA2XX::set_adc_time_shunt_voltage ( AdcTime time )

inline

Definition at line 125 of file ina2xx_base.h.

◆ set_bus_voltage_sensor()

void esphome::ina2xx_base::INA2XX::set_bus_voltage_sensor ( sensor::Sensor * sensor )

inline

Definition at line 132 of file ina2xx_base.h.

◆ set_charge_sensor_ah()

void esphome::ina2xx_base::INA2XX::set_charge_sensor_ah ( sensor::Sensor * sensor )

inline

Definition at line 139 of file ina2xx_base.h.

◆ set_charge_sensor_c()

void esphome::ina2xx_base::INA2XX::set_charge_sensor_c ( sensor::Sensor * sensor )

inline

Definition at line 138 of file ina2xx_base.h.

◆ set_current_sensor()

void esphome::ina2xx_base::INA2XX::set_current_sensor ( sensor::Sensor * sensor )

inline

Definition at line 134 of file ina2xx_base.h.

◆ set_die_temperature_sensor()

void esphome::ina2xx_base::INA2XX::set_die_temperature_sensor ( sensor::Sensor * sensor )

inline

Definition at line 133 of file ina2xx_base.h.

◆ set_energy_sensor_j()

void esphome::ina2xx_base::INA2XX::set_energy_sensor_j ( sensor::Sensor * sensor )

inline

Definition at line 136 of file ina2xx_base.h.

◆ set_energy_sensor_wh()

void esphome::ina2xx_base::INA2XX::set_energy_sensor_wh ( sensor::Sensor * sensor )

inline

Definition at line 137 of file ina2xx_base.h.

◆ set_max_current_a()

void esphome::ina2xx_base::INA2XX::set_max_current_a ( float max_current_a )

inline

Definition at line 122 of file ina2xx_base.h.

◆ set_model()

void esphome::ina2xx_base::INA2XX::set_model ( INAModel model )

inline

Definition at line 141 of file ina2xx_base.h.

◆ set_power_sensor()

void esphome::ina2xx_base::INA2XX::set_power_sensor ( sensor::Sensor * sensor )

inline

Definition at line 135 of file ina2xx_base.h.

◆ set_reset_on_boot()

void esphome::ina2xx_base::INA2XX::set_reset_on_boot ( bool reset )

inline

Definition at line 129 of file ina2xx_base.h.

◆ set_shunt_resistance_ohm()

void esphome::ina2xx_base::INA2XX::set_shunt_resistance_ohm ( float shunt_resistance_ohm )

inline

Definition at line 121 of file ina2xx_base.h.

◆ set_shunt_tempco()

void esphome::ina2xx_base::INA2XX::set_shunt_tempco ( uint16_t coeff )

inline

Definition at line 128 of file ina2xx_base.h.

◆ set_shunt_voltage_sensor()

void esphome::ina2xx_base::INA2XX::set_shunt_voltage_sensor ( sensor::Sensor * sensor )

inline

Definition at line 131 of file ina2xx_base.h.

◆ setup()

void esphome::ina2xx_base::INA2XX::setup ( )

overridevirtual

Reimplemented from esphome::Component.

Reimplemented in esphome::ina2xx_i2c::INA2XXI2C, and esphome::ina2xx_spi::INA2XXSPI.

Definition at line 52 of file ina2xx_base.cpp.

◆ two_complement_()

int64_t esphome::ina2xx_base::INA2XX::two_complement_	(	uint64_t	value,
		uint8_t	bits )

protected

Definition at line 603 of file ina2xx_base.cpp.

◆ update()

void esphome::ina2xx_base::INA2XX::update ( )

overridevirtual

Implements esphome::PollingComponent.

Definition at line 82 of file ina2xx_base.cpp.

◆ write_ina_register()

virtual bool esphome::ina2xx_base::INA2XX::write_ina_register	(	uint8_t	a_register,
		const uint8_t *	data,
		size_t	len )

protectedpure virtual

Implemented in esphome::ina2xx_i2c::INA2XXI2C, and esphome::ina2xx_spi::INA2XXSPI.

◆ write_unsigned_16_()

bool esphome::ina2xx_base::INA2XX::write_unsigned_16_	(	uint8_t	reg,
		uint16_t	val )

protected

Definition at line 567 of file ina2xx_base.cpp.

Field Documentation

◆ adc_avg_samples_

AdcAvgSamples esphome::ina2xx_base::INA2XX::adc_avg_samples_ {AdcAvgSamples::ADC_AVG_SAMPLES_128}

protected

Definition at line 173 of file ina2xx_base.h.

◆ adc_range_

AdcRange esphome::ina2xx_base::INA2XX::adc_range_ {AdcRange::ADC_RANGE_0}

protected

Definition at line 169 of file ina2xx_base.h.

◆ adc_time_bus_voltage_

AdcTime esphome::ina2xx_base::INA2XX::adc_time_bus_voltage_ {AdcTime::ADC_TIME_4120US}

protected

Definition at line 170 of file ina2xx_base.h.

◆ adc_time_die_temperature_

AdcTime esphome::ina2xx_base::INA2XX::adc_time_die_temperature_ {AdcTime::ADC_TIME_4120US}

protected

Definition at line 172 of file ina2xx_base.h.

◆ adc_time_shunt_voltage_

AdcTime esphome::ina2xx_base::INA2XX::adc_time_shunt_voltage_ {AdcTime::ADC_TIME_4120US}

protected

Definition at line 171 of file ina2xx_base.h.

◆ bus_voltage_sensor_

sensor::Sensor* esphome::ina2xx_base::INA2XX::bus_voltage_sensor_ {nullptr}

protected

Definition at line 190 of file ina2xx_base.h.

◆ [struct]

struct { ... } esphome::ina2xx_base::INA2XX::cfg_

◆ charge_overflows_count_

uint32_t esphome::ina2xx_base::INA2XX::charge_overflows_count_ {0}

protected

Definition at line 184 of file ina2xx_base.h.

◆ charge_sensor_ah_

sensor::Sensor* esphome::ina2xx_base::INA2XX::charge_sensor_ah_ {nullptr}

protected

Definition at line 197 of file ina2xx_base.h.

◆ charge_sensor_c_

sensor::Sensor* esphome::ina2xx_base::INA2XX::charge_sensor_c_ {nullptr}

protected

Definition at line 196 of file ina2xx_base.h.

◆ current_lsb_

float esphome::ina2xx_base::INA2XX::current_lsb_ {0}

protected

Definition at line 181 of file ina2xx_base.h.

◆ current_lsb_scale_factor

int8_t esphome::ina2xx_base::INA2XX::current_lsb_scale_factor

Definition at line 232 of file ina2xx_base.h.

◆ current_sensor_

sensor::Sensor* esphome::ina2xx_base::INA2XX::current_sensor_ {nullptr}

protected

Definition at line 192 of file ina2xx_base.h.

◆ dev_id_

uint16_t esphome::ina2xx_base::INA2XX::dev_id_ {0}

protected

Definition at line 221 of file ina2xx_base.h.

◆ device_mismatch_

bool esphome::ina2xx_base::INA2XX::device_mismatch_ {false}

protected

Definition at line 222 of file ina2xx_base.h.

◆ die_temp_lsb

float esphome::ina2xx_base::INA2XX::die_temp_lsb

Definition at line 233 of file ina2xx_base.h.

◆ die_temperature_sensor_

sensor::Sensor* esphome::ina2xx_base::INA2XX::die_temperature_sensor_ {nullptr}

protected

Definition at line 191 of file ina2xx_base.h.

◆ energy_coeff

float esphome::ina2xx_base::INA2XX::energy_coeff

Definition at line 235 of file ina2xx_base.h.

◆ energy_overflows_count_

uint32_t esphome::ina2xx_base::INA2XX::energy_overflows_count_ {0}

protected

Definition at line 183 of file ina2xx_base.h.

◆ energy_sensor_j_

sensor::Sensor* esphome::ina2xx_base::INA2XX::energy_sensor_j_ {nullptr}

protected

Definition at line 194 of file ina2xx_base.h.

◆ energy_sensor_wh_

sensor::Sensor* esphome::ina2xx_base::INA2XX::energy_sensor_wh_ {nullptr}

protected

Definition at line 195 of file ina2xx_base.h.

◆ full_loop_is_okay_

bool esphome::ina2xx_base::INA2XX::full_loop_is_okay_ {true}

protected

Definition at line 215 of file ina2xx_base.h.

◆ ina_model_

INAModel esphome::ina2xx_base::INA2XX::ina_model_ {INAModel::INA_UNKNOWN}

protected

Definition at line 220 of file ina2xx_base.h.

◆ max_current_a_

float esphome::ina2xx_base::INA2XX::max_current_a_

protected

Definition at line 168 of file ina2xx_base.h.

◆ NOT_INITIALIZED

enum esphome::ina2xx_base::INA2XX::State esphome::ina2xx_base::INA2XX::NOT_INITIALIZED

protected

◆ power_coeff

float esphome::ina2xx_base::INA2XX::power_coeff

Definition at line 234 of file ina2xx_base.h.

◆ power_sensor_

sensor::Sensor* esphome::ina2xx_base::INA2XX::power_sensor_ {nullptr}

protected

Definition at line 193 of file ina2xx_base.h.

◆ reset_on_boot_

bool esphome::ina2xx_base::INA2XX::reset_on_boot_ {true}

protected

Definition at line 175 of file ina2xx_base.h.

◆ shunt_cal_

uint16_t esphome::ina2xx_base::INA2XX::shunt_cal_ {0}

protected

Definition at line 180 of file ina2xx_base.h.

◆ shunt_cal_scale

float esphome::ina2xx_base::INA2XX::shunt_cal_scale

Definition at line 231 of file ina2xx_base.h.

◆ shunt_resistance_ohm_

float esphome::ina2xx_base::INA2XX::shunt_resistance_ohm_

protected

Definition at line 167 of file ina2xx_base.h.

◆ shunt_tempco_ppm_c_

uint16_t esphome::ina2xx_base::INA2XX::shunt_tempco_ppm_c_ {0}

protected

Definition at line 174 of file ina2xx_base.h.

◆ shunt_voltage_sensor_

sensor::Sensor* esphome::ina2xx_base::INA2XX::shunt_voltage_sensor_ {nullptr}

protected

Definition at line 189 of file ina2xx_base.h.

◆ v_shunt_lsb_range0

float esphome::ina2xx_base::INA2XX::v_shunt_lsb_range0

Definition at line 229 of file ina2xx_base.h.

◆ v_shunt_lsb_range1

float esphome::ina2xx_base::INA2XX::v_shunt_lsb_range1

Definition at line 230 of file ina2xx_base.h.

◆ vbus_lsb

float esphome::ina2xx_base::INA2XX::vbus_lsb

Definition at line 228 of file ina2xx_base.h.

The documentation for this class was generated from the following files:

esphome/components/ina2xx_base/ina2xx_base.h
esphome/components/ina2xx_base/ina2xx_base.cpp

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ State

Member Function Documentation

◆ check_device_model_()

◆ configure_adc_()

◆ configure_adc_range_()

◆ configure_shunt_()

◆ configure_shunt_tempco_()

◆ dump_config()

◆ loop()

◆ read_bus_voltage_()

◆ read_charge_()

◆ read_current_a_()

◆ read_diagnostics_and_act_()

◆ read_die_temp_c_()

◆ read_energy_()

◆ read_ina_register()

◆ read_power_w_()

◆ read_shunt_voltage_mv_()

◆ read_unsigned_()

◆ read_unsigned_16_()

◆ reset_config_()

◆ reset_energy_counters()

◆ set_adc_avg_samples()

◆ set_adc_range()

◆ set_adc_time_bus_voltage()

◆ set_adc_time_die_temperature()

◆ set_adc_time_shunt_voltage()

◆ set_bus_voltage_sensor()

◆ set_charge_sensor_ah()

◆ set_charge_sensor_c()

◆ set_current_sensor()

◆ set_die_temperature_sensor()

◆ set_energy_sensor_j()

◆ set_energy_sensor_wh()

◆ set_max_current_a()

◆ set_model()

◆ set_power_sensor()

◆ set_reset_on_boot()

◆ set_shunt_resistance_ohm()

◆ set_shunt_tempco()

◆ set_shunt_voltage_sensor()

◆ setup()

◆ two_complement_()

◆ update()

◆ write_ina_register()

◆ write_unsigned_16_()

Field Documentation

◆ adc_avg_samples_

◆ adc_range_

◆ adc_time_bus_voltage_

◆ adc_time_die_temperature_

◆ adc_time_shunt_voltage_

◆ bus_voltage_sensor_

◆ [struct]

◆ charge_overflows_count_

◆ charge_sensor_ah_

◆ charge_sensor_c_

◆ current_lsb_

◆ current_lsb_scale_factor

◆ current_sensor_

◆ dev_id_

◆ device_mismatch_

◆ die_temp_lsb

◆ die_temperature_sensor_

◆ energy_coeff

◆ energy_overflows_count_

◆ energy_sensor_j_

◆ energy_sensor_wh_

◆ full_loop_is_okay_

◆ ina_model_

◆ max_current_a_

◆ NOT_INITIALIZED

◆ power_coeff

◆ power_sensor_
